WYVRN Unreal SDK

The WYVRN SDK has a C++ / Blueprint library to integrate with AI, Chroma, and haptics.

This WYVRN SDK plugin has been tested with Unreal versions 4.21 through 5.6.

About

The WYVRN SDK is a runtime game plugin that is shared to provide a common API for naming events and triggering external AI, Chroma playback and haptic events.

Security

To avoid a 3rd party injecting malicious code, the plugin checks for a valid signature on the Razer Chromatic Library. The DLL issuer is validated to be Razer USA Ltd. Init and InitSDK will return RZRESULT_DLL_INVALID_SIGNATURE if the signature check fails.

General

• The WYVRN SDK allows an application or game to set the details in the Chroma Apps list within the Chroma App.

This document provides a guide to integrating AI, Chroma, and haptics using the WYVRN C++ SDK. Here is the list of available methods from the API:

• Initialize SDK: Initialize the WYVRN SDK to use the library.

• Set Event Name: Name a game event or game trigger to add Chroma and haptics.

• Uninitialize SDK: Cleanaly uninitialize the WYVRN SDK when done.

WYVRN SDK

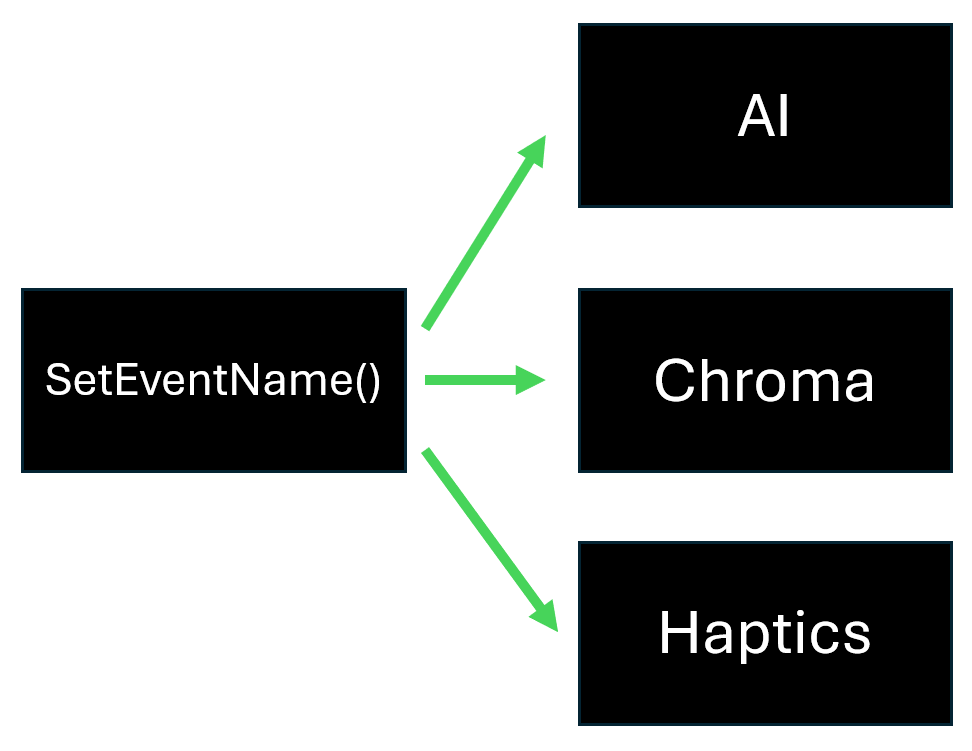

The WYVRN SDK is the combination of AI, Chroma, and Razer Sensa HD Haptics in a single SDK. By integrating AI, RGB lighting and haptics into game environments and events, players can enjoy a truly immersive gaming experience. The WYVRN SDK is capable of playing Chroma animations and haptics on the Razer Sensa HD Haptics devices. SetEventName() can trigger AI interaction, RGB lighting, or haptics or all of the above.

Downloads

SDKs

• WYVRN SDK

	Engine	Git Repo	Download Link	Git Repo	Download Link	Git Repo	Download Link
Encoding		UNICODE		ASCII		MULTI-BYTE
	WYVRN Design Template	Git	Download
	WYVRN C++ SDK	Git	Download	Git	Download	Git	Download
	WYVRN Unreal SDK	Git	Download
	WYVRN Unity SDK	Git	Download

Runtime Plugin Structure

Plugin Definition: Plugins/WyvrnSDKPlugin/WyvrnSDKPlugin.uplugin

Plugin Source: Wyvrn_Sample/Plugins/WyvrnSDKPlugin/Source/WyvrnSDKPlugin/

Headers: Wyvrn_Sample/Plugins/WyvrnSDKPlugin/Source/WyvrnSDKPlugin/Public/

Implementation: Wyvrn_Sample/Plugins/WyvrnSDKPlugin/Source/WyvrnSDKPlugin/Private/

Sample Blueprint Init / Uninit Setup

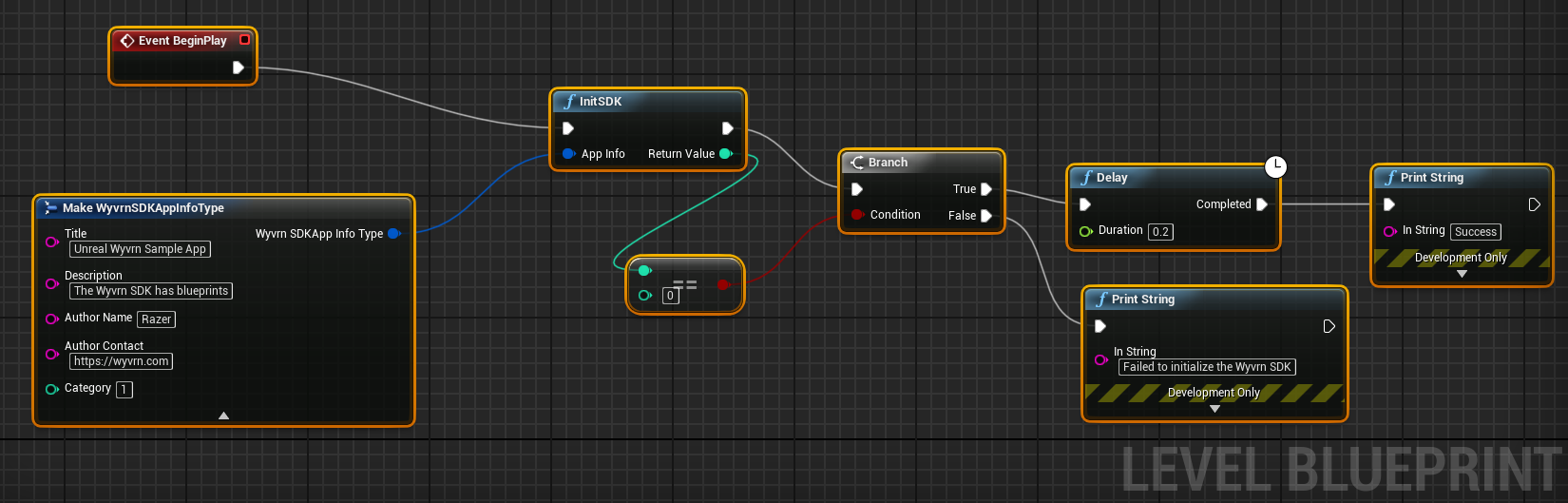

Event BeginPlay invokes InitSDK passing the AppInfo that provides the information that displays within Synapse->Connect->Apps. InitSDK returns 0 upon success after a 100ms delay the WYVRN API is ready to use. If InitSDK returns nonzero, avoid further calls to the WYVRN API.

InitSDK

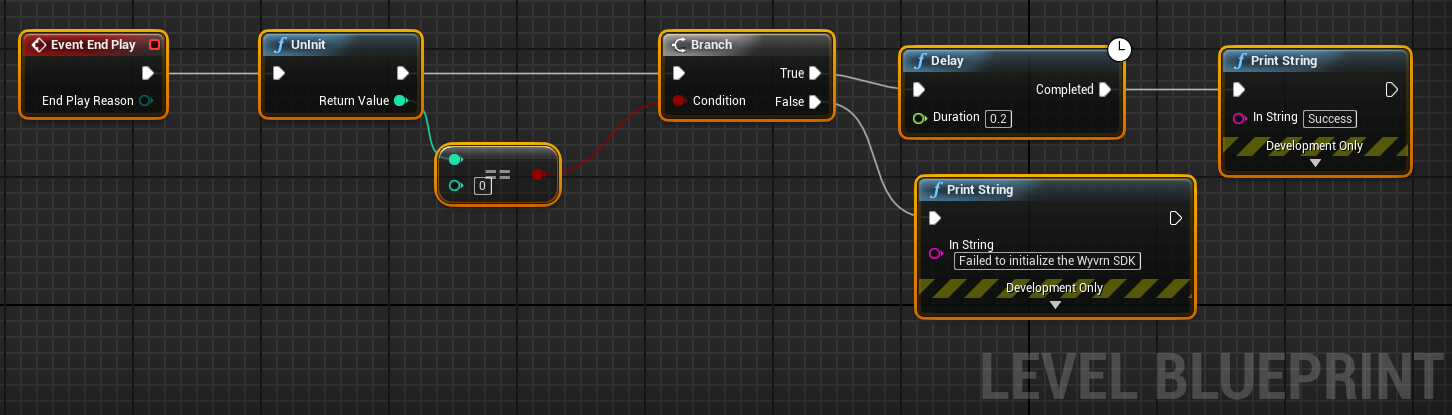

UnInit

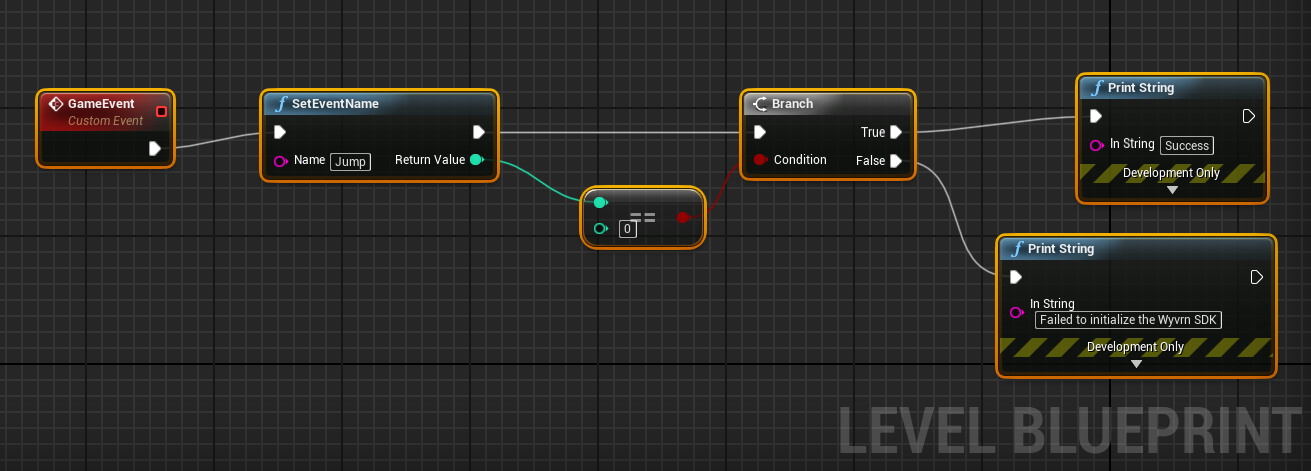

SetEventName

Namespace

The UWyvrnSDKPluginBPLibrary uses a global namespace to make the Blueprint library available.

#include "WyvrnSDKPluginBPLibrary.h"

---

API Class

The WyvrnAPI class provides a wrapper for the WYVRN SDK Library. The UWyvrnSDKPluginBPLibrary class exposes the WYVRN API to blueprints. The UWyvrnSDKPluginBPLibrary functions can also be called from C++.

Initialize SDK

Initialize the WYVRN SDK in order to utilize the API. The InitSDK method takes an AppInfo parameter which defines the application or game details that will appear in Synapse and the Chroma App within the Chroma Apps tab. The expected return result should be RZRESULT_SUCCESS which indicates the API is ready for use. If a non-success result is returned, the WYVRN implementation should be disabled until the next time the application or game is launched. Reasons for failure are likely to be the user does not have the Synapse or the Chroma App installed. After successfully initializing the WYVRN SDK, wait approximately 100 ms before setting events.

if (!UWyvrnSDKPluginBPLibrary::IsInitialized())
{
    FWyvrnSDKAppInfoType appInfo;
    appInfo.Title = "Unreal WYVRN Sample Game Application";
    appInfo.Description = "A sample application using Razer Wyvrn SDK";
    appInfo.Author_Name = "Razer";
    appInfo.Author_Contact = "https://WYVRN.com";

    //    0x01 | // Utility. (To specifiy this is an utility application)
    //    0x02   // Game. (To specifiy this is a game);
    appInfo.Category = 1;

    int32 result = UWyvrnSDKPluginBPLibrary::WyvrnSDKInitSDK(appInfo);
    if (result == RZRESULT_SUCCESS)
    {
        // Init Success! Ready to use the WYVRN SDK!
    }
    else
    {
        // Init Failed! Stop using the WYVRN SDK until the next game launch!";
    }
}

Set Event Name

Game events can be named to add supplemental technology to your lighting experience. By naming game events and game triggers, the event name can be used as a lookup to do things for AI, Chroma, and haptics. SetEventName("Jump") could be used to play a Chroma animation for the jump game event. The Jump event can also use A corresponding haptic effect to enhance emersion for the title. No other APIs are required to add Chroma and haptics other than to invoke SetEventName(). Some game events can have lighting or haptics or both. It just depends on the game design to create an experience that makes sense.

// Trigger AI, Chroma, and haptics
UWyvrnSDKPluginBPLibrary::SetEventName("Jump");

The API can use event names with a fallback parameter so that if the WYVRN configuration doesn't match on the event name, an alternative event name can be used. EVENT_A;fallback=EVENT_B will search the WYVRN configuration for EVENT_A and if not matched will fallback to the EVENT_B. EVENT_A will test for matches with external commands and fallback commands before attempting a fallback for EVENT_B. If neither event matches, nothing will happen. If both fallback methods are used meaning fallback=EVENT_B is provided with SetEventName and the configuration specifies the fallback event, the result will prioritize the configuration over the SetEventName fallback.

UWyvrnSDKPluginBPLibrary::SetEventName("EVENT_A;fallback=EVENT_B")

Generic Database

Games can provide a WYVRN configuration that SetEventName will use to find a match. If a match is not found, the system then looks at the GenericEvent WYVRN configuration to make a match. If neither the game or GenericEvent WYVRN configurations match, nothing will happen.

Fallback Commands

The WYVRN configuration includes a FallbackCommands array that uses the same schema as the ExternalCommands array. Both FallbackCommands and ExternalCommands support a Chroma_Events array and Haptic_Events array.

{
  "ExternalCommands": [
    {
      "External_Command_ID": "EXTERNAL_ID",
      "Chroma_Events": [],
      "Haptic_Events": []
    }
  ],
  "FallbackCommands": [
    {
      "External_Command_ID": "FALLBACK_ID",
      "Chroma_Events": [],
      "Haptic_Events": []
    }
  ]
}

ExternalCommands use exact string matches where FallbackCommands use regular expression matching. The .* string is a wildcard that can be used to match partial event names. The ".*FALLBACK_ID" pattern will match any string that ends with "FALLBACK_ID". The "FALLBACK_ID.*" pattern will match any string that starts with "FALLBACK_ID". The ".*FALLBACK_ID.*" pattern will match on an event name that contains the "FALLBACK_ID" string.

{
  "FallbackCommands": [
    {
      "External_Command_ID": ".*FALLBACK_ID.*"
    }
  ]
}

Uninitialize SDK

Applications should uninitialize the WYVRN SDK with Uninit() for a clean exit. Uninitialization is only needed if the WYVRN SDK was successfully initialized. The expected successful return result should be RZRESULT_SUCCESS.

int32 result = UWyvrnSDKPluginBPLibrary::WyvrnSDKUnInit();
if (result == RZRESULT_SUCCESS)
{
    // WYVRN has been uninitialized!
}
else
{
    // WYVRN uninitialization was unsuccessful!
}

Getting Started

Frameworks supported

• Windows WyvrnSDK (32-bit)

• Windows WyvrnSDK (64-bit)

---

Assets

A game uses SetEventName to name game triggers. No other assets need to be included in the game to add haptics and lighting effects. Playback is controlled from the external Events.config for the named events.

---

Full API

WYVRN SDK Library Methods:

PluginCoreInitSDK

Direct access to low level API.

// DLL Interface
EXPORT_API RZRESULT PluginCoreInitSDK(
    ChromaSDK::APPINFOTYPE* AppInfo);

// Class Plugin
int32 Result = UWyvrnSDKPluginBPLibrary::WyvrnSDKInitSDK(AppInfo);

---

PluginCoreSetEventName

Direct access to low level API.

// DLL Interface
EXPORT_API RZRESULT PluginCoreSetEventName(LPCTSTR Name);

// Class Plugin
int32 Result = UWyvrnSDKPluginBPLibrary::SetEventName("Effect1");

---

PluginCoreUnInit

Direct access to low level API.

// DLL Interface
EXPORT_API RZRESULT PluginCoreUnInit();

// Class Plugin
int32 Result = UWyvrnSDKPluginBPLibrary::WyvrnSDKUnInit();
